vga out to hdmi in adapter hdmi to vga converter Support 1080P HDMI Splitter

Name: vga out to hdmi in adapter hdmi to vga converter Support 1080P HDMI Splitter
Brand: NEWBRIDGE
Price: 1 USD

Quality vga out to hdmi in adapter hdmi to vga converter Support 1080P HDMI Splitter for sale

Brand Name : NEWBRIDGE

Model Number : ND1106-C03

Certification : CE,FCC

Place of Origin : SHENZHEN,CHINA

MOQ : 1PC

Price : Negotiation

Packaging Details : packing can be done by customer's requested, usually used in carton

Delivery Time : According to the quantiy and stocking , 3-4 working days after payment

Payment Terms : T/T , Western Union

Supply Ability : According to the different products , the monthly output is different

HDMI version : HDMI 1.4a

HDCP version : HDCP1.4

Max working current : 600mA

Operating Temperature range : (-15 to +55℃)

Product Dimension : 89*69*29mm

Weight : 140g

Contact Now

vga out to hdmi in adapter hdmi to vga converter Support 1080P HDMI Splitter

HDMI TO VGA CONVERTER:

The HDMI to VGA converter support HDMI1.4b and HDCP1.4.The VGA output port support 10-bit resolution up to 165MHz pixel rate(1080p/UXGA).Support 422 to 444 converter and with
One L/R audio output.

vga out to hdmi in adapter hdmi to vga converter Support 1080P HDMI Splitter

Feature

★ Support HDMI1.4b
★ Support HDCP1.4
★ Supports highest video resolution 1080p/60Hz and UXGA.
★ Support 10-bit resolution uo to 165 MHz pixel rate
★ Support 442 to 444 converter.
★ DC5V/1A power supply

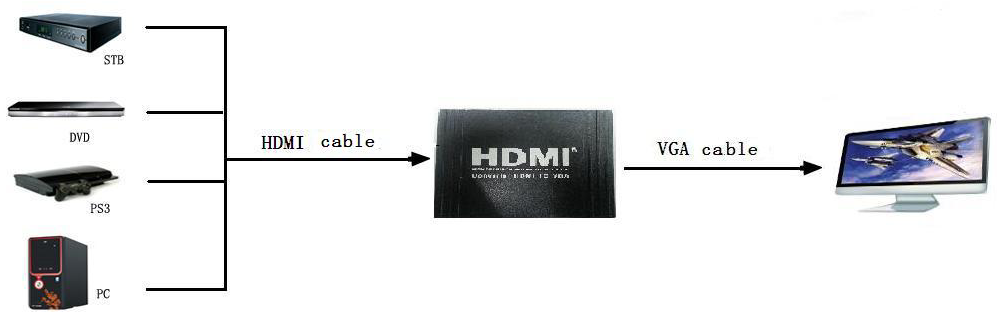

Physical Connection Showing Picture

vga out to hdmi in adapter hdmi to vga converter Support 1080P HDMI Splitter

SPECIFICATIONS:

HDMI version:HDMI 1.4a

HDCP version :HDCP1.4

Support video color format :1080P/60Hz/UXGA (10-bit color/165Mhz pixel rate

Support audio format:DTS-HD/Dolby-trueHD/LPCM7.1/DTS /DSD

Max working current:600mA

Power adapter format..Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range: (-15 to +55℃)

Dimension (L x W x H):89X69X29(mm)

Weight:140g

Operation and connections:

1: Connect one cable from HDMI source device into HDMI input.
2: Connect one cable from displayer into VGA output.
3: Connect power adapter to the converter.

The Package includes:

1. HDMI to VGA converter 1pc
2. 5V DC Power adapter 1pc
3. User Manual 1pc

Product Tags:

hdmi port splitter

hdmi digital splitter

vga out to hdmi in adapter hdmi to vga converter Support 1080P HDMI Splitter Images
